Machine Catalog

Injection Molding Machines

PDI has 10 injection molding machines ranging from 90 Ton to 880 Ton.   We are equipped to make parts as small as a dime all the way up to massive parts the size of a chair in our largest machines.  Since we keep such a variety of machines, we can run just about any mold.  Our process engineers will select the machine most suited to your job.  We provide this machine information and specs here for the use of part designers and engineers.

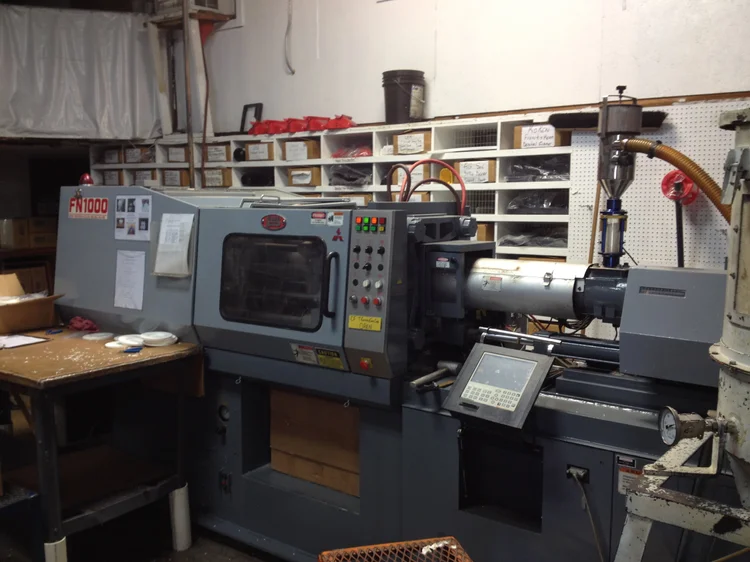

Nissei 90/12c FN1000 89 Ton Max Part Length/Width 8” x 8” Max Part Weight: 4.2 oz Max Mold Width: 15.2″ Min Stack Height: 7.9″ Max Daylight: 26.4″ Ejector Stroke: 3″

Nissei 90/12c FN1000
89 Ton
Max Part Length/Width 8” x 8”
Max Part Weight: 4.2 oz
Max Mold Width: 15.2″
Min Stack Height: 7.9″
Max Daylight: 26.4″
Ejector Stroke: 3″

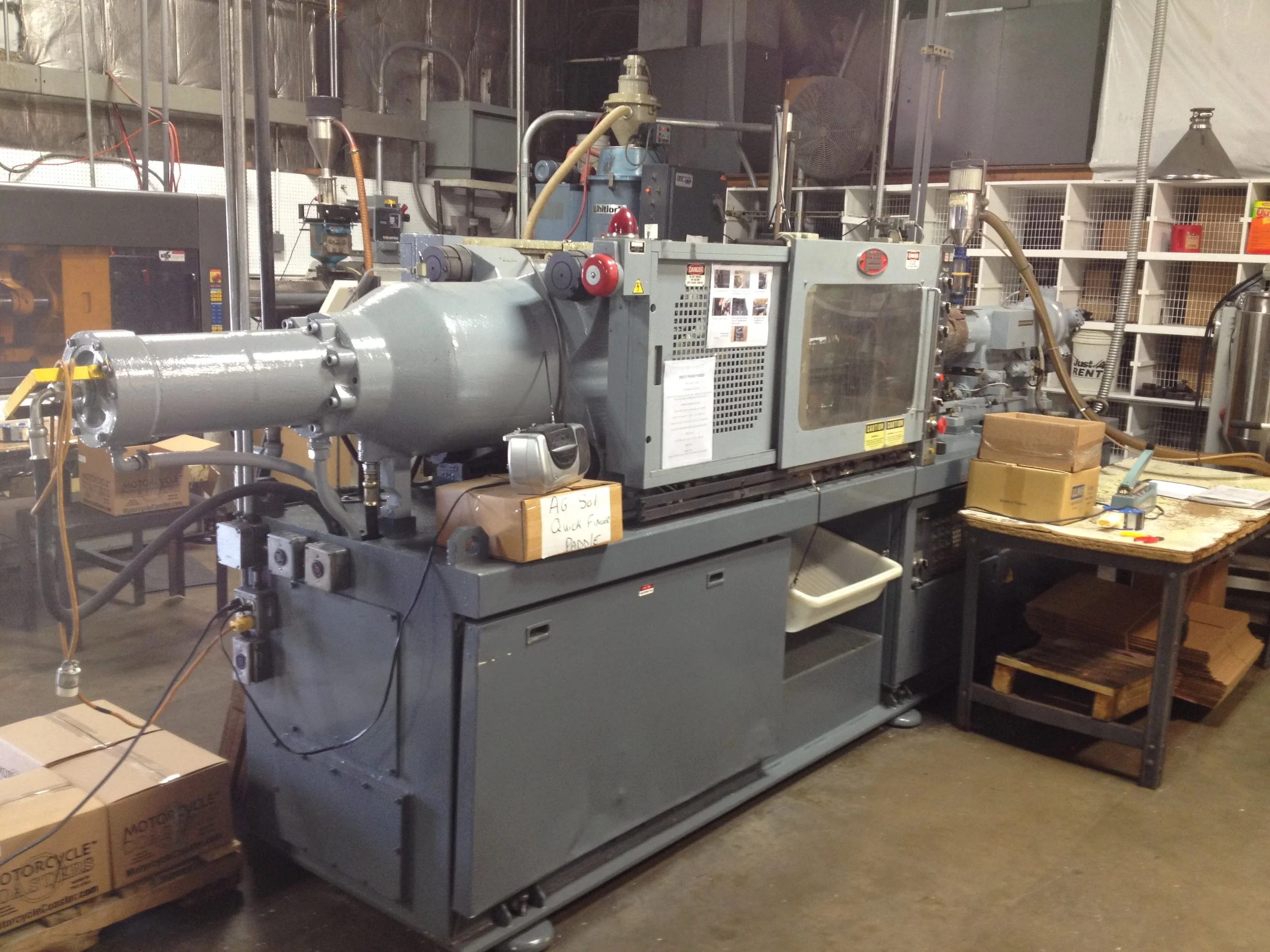

Nissei 120 / 18A FS 120 118 Ton Max Part Length/Width 9” x 9” Max Part Weight: 6.4 oz Max Mold Width: 16.1″ Min Stack Height: 9.75″ Max Daylight: 27.5″ Ejector Stroke: 3″

Nissei 120 / 18A FS 120
118 Ton
Max Part Length/Width 9” x 9”
Max Part Weight: 6.4 oz
Max Mold Width: 16.1″
Min Stack Height: 9.75″
Max Daylight: 27.5″
Ejector Stroke: 3″

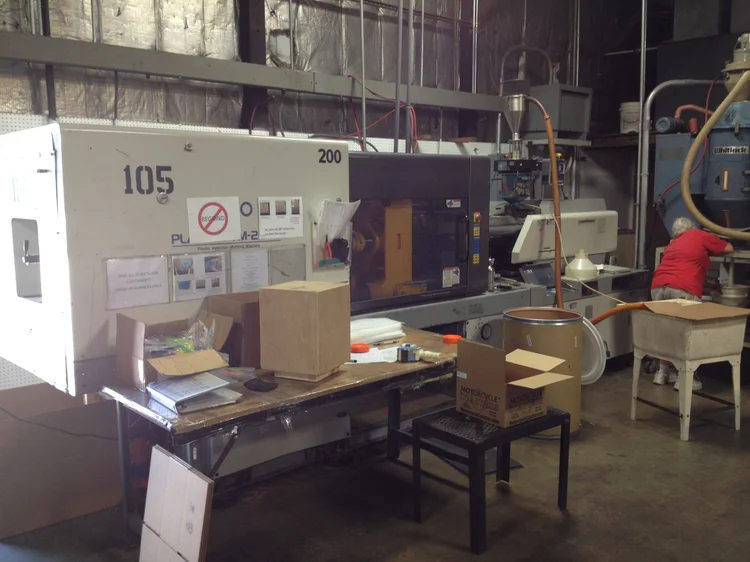

Toyo 200T 200 Ton Max Part Length/Width 15” x 15” Max Part Weight: 10 oz Max Mold Width: 22″ Min Stack Height: 7.375″ Max Daylight: 37.5″ Ejector Stroke: 4.25″

Toyo 200T
200 Ton
Max Part Length/Width 15” x 15”
Max Part Weight: 10 oz
Max Mold Width: 22″
Min Stack Height: 7.375″
Max Daylight: 37.5″
Ejector Stroke: 4.25″

Nissei 360/14A FS360 365 Ton Max Part Length/Width 20” x 20” Max Part Weight: 39.1 oz Max Mold Width: 27.5″ Min Stack Height: 12.5″ Max Daylight: 51″ Ejector Stroke: 5.9

Nissei 360/14A FS360
365 Ton
Max Part Length/Width 20” x 20”
Max Part Weight: 39.1 oz
Max Mold Width: 27.5″
Min Stack Height: 12.5″
Max Daylight: 51″
Ejector Stroke: 5.9

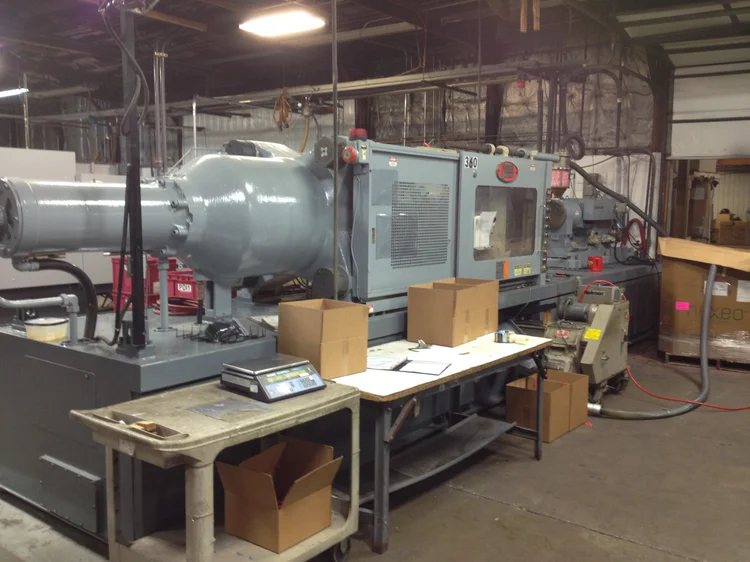

Nissei FS360 361T 360 Ton Max Part Length/Width 20” x 20” Max Part Weight: 36.6 oz Max Mold Width: 27.5″ Min Stack Height: 11″ Max Daylight: 52″ Ejector Stroke: 6″

Nissei FS360 361T
360 Ton
Max Part Length/Width 20” x 20”
Max Part Weight: 36.6 oz
Max Mold Width: 27.5″
Min Stack Height: 11″
Max Daylight: 52″
Ejector Stroke: 6″

Nissei FS 360 362T 360 Ton Max Part Length/Width 20” x 20” Max Part Weight: 38.2 ox Max Mold Width: 27.5 Min Stack Height: 11″ Max Daylight: 52″ Ejector Stroke: 6″

Nissei FS 360 362T
360 Ton
Max Part Length/Width 20” x 20”
Max Part Weight: 38.2 ox
Max Mold Width: 27.5
Min Stack Height: 11″
Max Daylight: 52″
Ejector Stroke: 6″

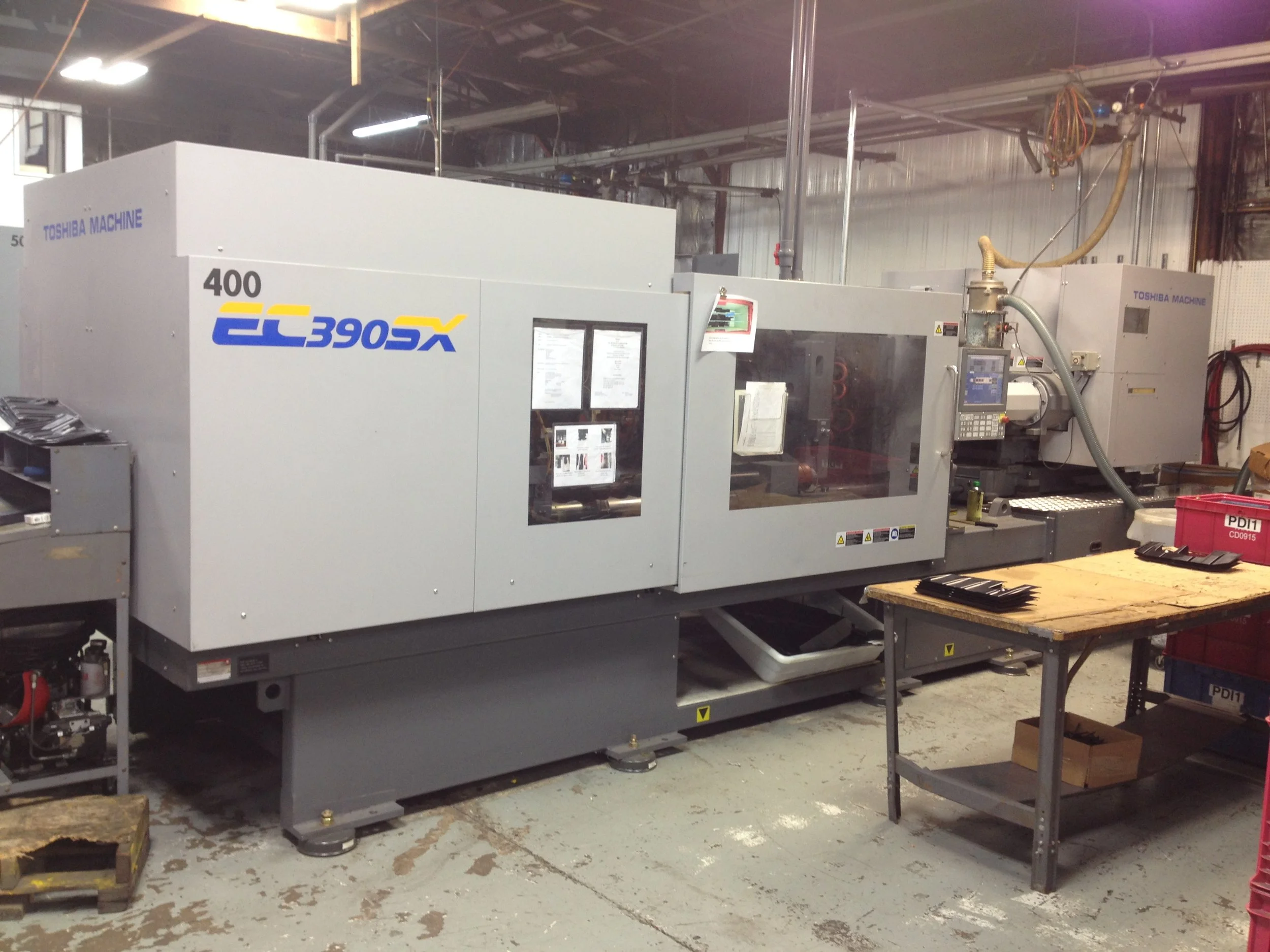

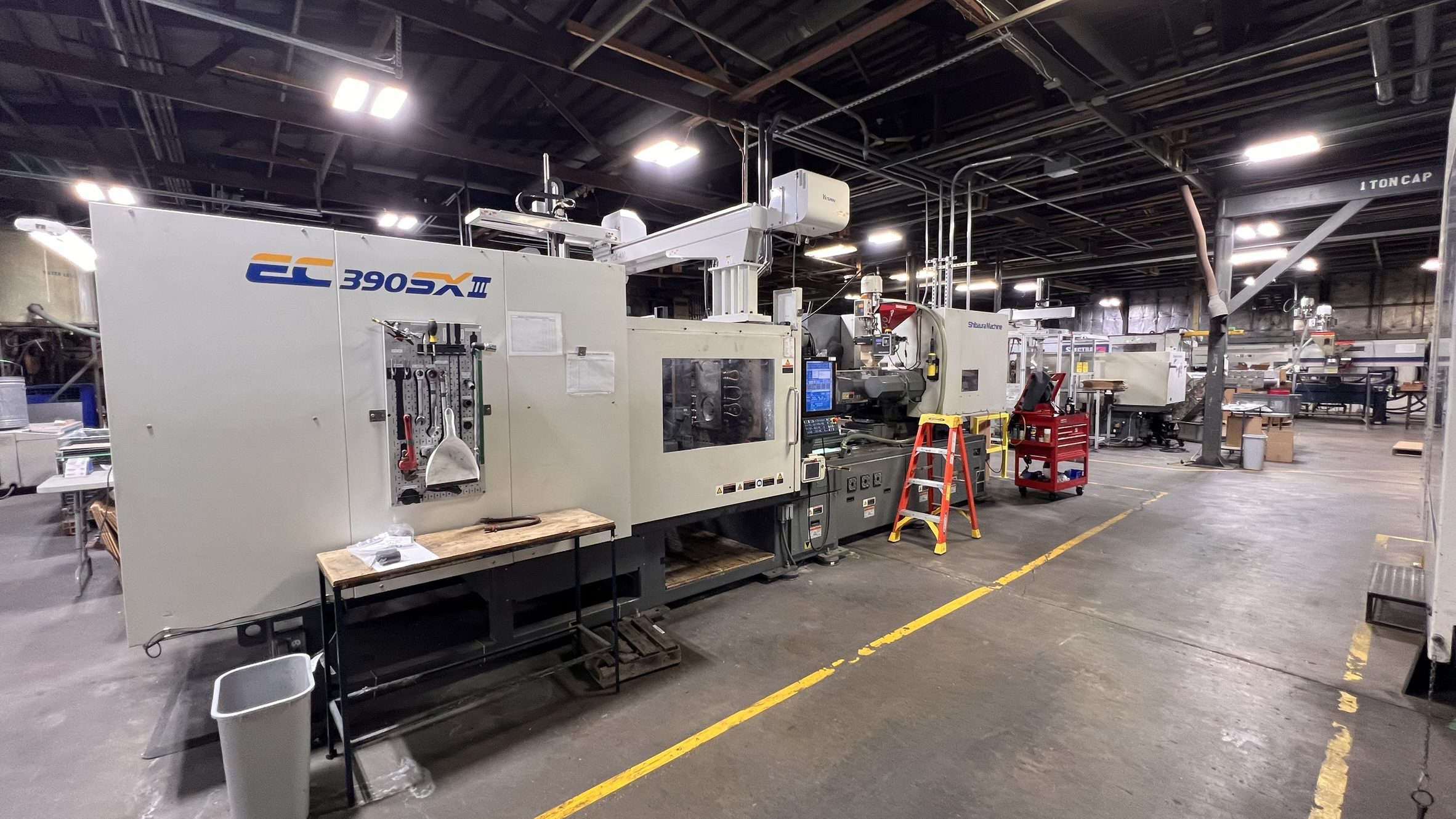

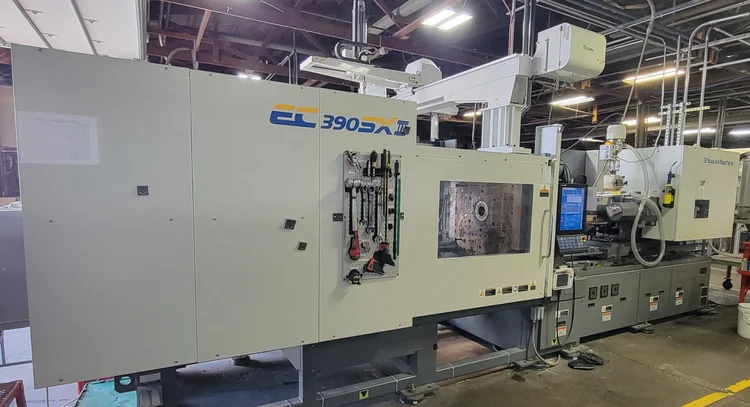

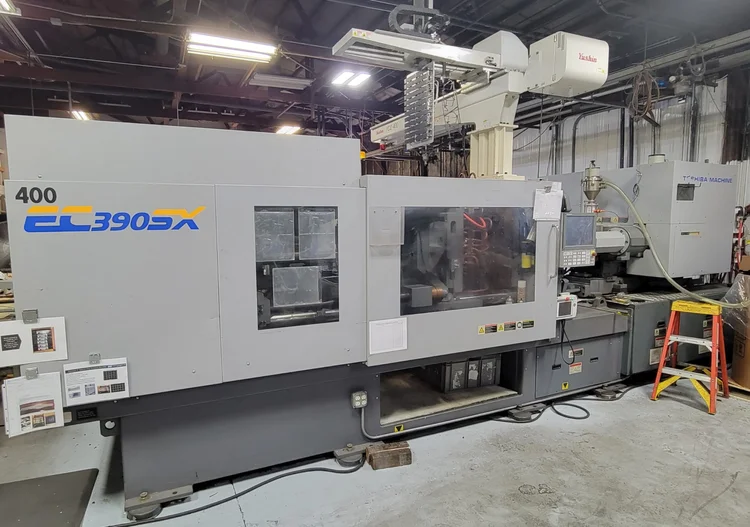

Toshiba EC390SX 400T Equipped with a robot 385 Ton Max Part Length/Width 25” x 24” Max Part Weight: 37 oz Max Mold Width: 31.9″ Min Stack Height: 11.8 Max Daylight: 55.9″ Ejector Stroke: 5.9″

Toshiba EC390SX 400T
Equipped with a robot
385 Ton
Max Part Length/Width 25” x 24”
Max Part Weight: 37 oz
Max Mold Width: 31.9″
Min Stack Height: 11.8
Max Daylight: 55.9″
Ejector Stroke: 5.9″

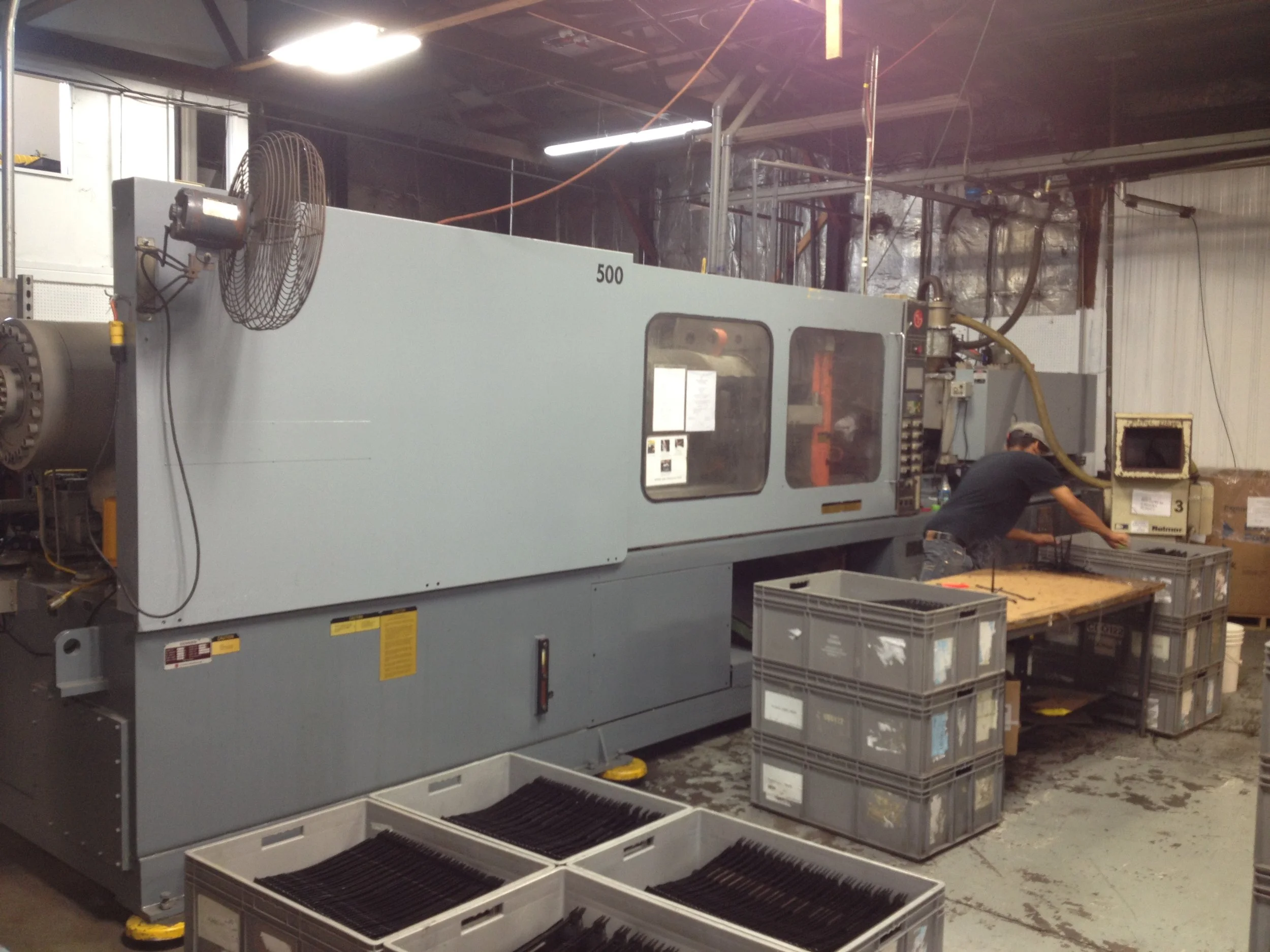

LG IDE500EN 500T 500 Ton Max Part Length/Width 25” x 25” Max Part Weight: 83.2 oz Max Mold Width: 32″ Min Stack Height: 13.5″ Max Daylight: 57.25″ Ejector Stroke: 7″

LG IDE500EN 500T
500 Ton
Max Part Length/Width 25” x 25”
Max Part Weight: 83.2 oz
Max Mold Width: 32″
Min Stack Height: 13.5″
Max Daylight: 57.25″
Ejector Stroke: 7″

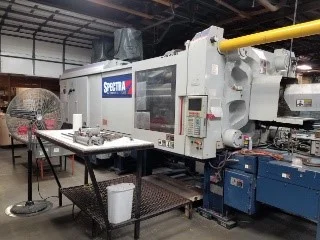

Van Dorn 730SP-2800 Spectra 730Ton Max Part Length/Width 35” x 32" Max Part wt. 59oz Max Mold Width 39.4” Max Mold Height 42.3” Min Stack Height 17.9 Max Daylight 70.1” Ejector Stroke 7.9”

Van Dorn 730SP-2800 Spectra
730Ton
Max Part Length/Width 35” x 32"
Max Part wt. 59oz
Max Mold Width 39.4”
Max Mold Height 42.3”
Min Stack Height 17.9
Max Daylight 70.1”
Ejector Stroke 7.9”

Van Dorn 880SP-4300 Spectra 880Ton Max Part Length/Width 39” x 32” Max Part Weight 89.6oz Max Mold Width 39.4” Max Mold Height 46.3” Min Stack Height 23.6” Max Daylight 75.8 Ejector Stroke 7.9”

Van Dorn 880SP-4300 Spectra
880Ton
Max Part Length/Width 39” x 32”
Max Part Weight 89.6oz
Max Mold Width 39.4”
Max Mold Height 46.3”
Min Stack Height 23.6”
Max Daylight 75.8
Ejector Stroke 7.9”

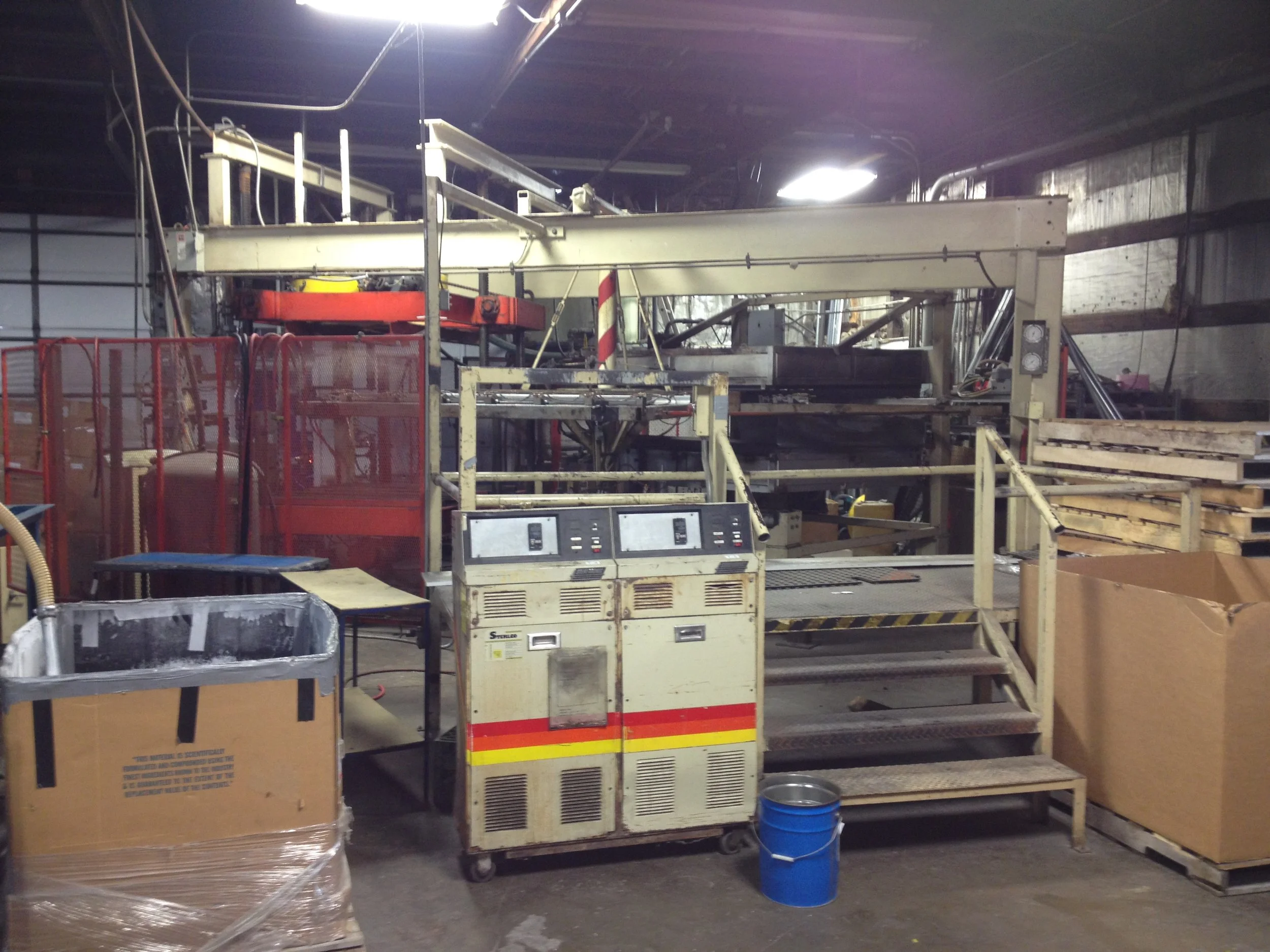

Thermoforming machines

PDI has 3 thermoforming machines, that some manufacturers refer to as vacuum forming machines.  Thermoforming is an excellent way to make large parts with a low tooling cost.  Most molds can run in any of our machines, and our process engineers will select the best one suited for your project.. We provide machine information and specs here on this page for the use of part designers and engineers.

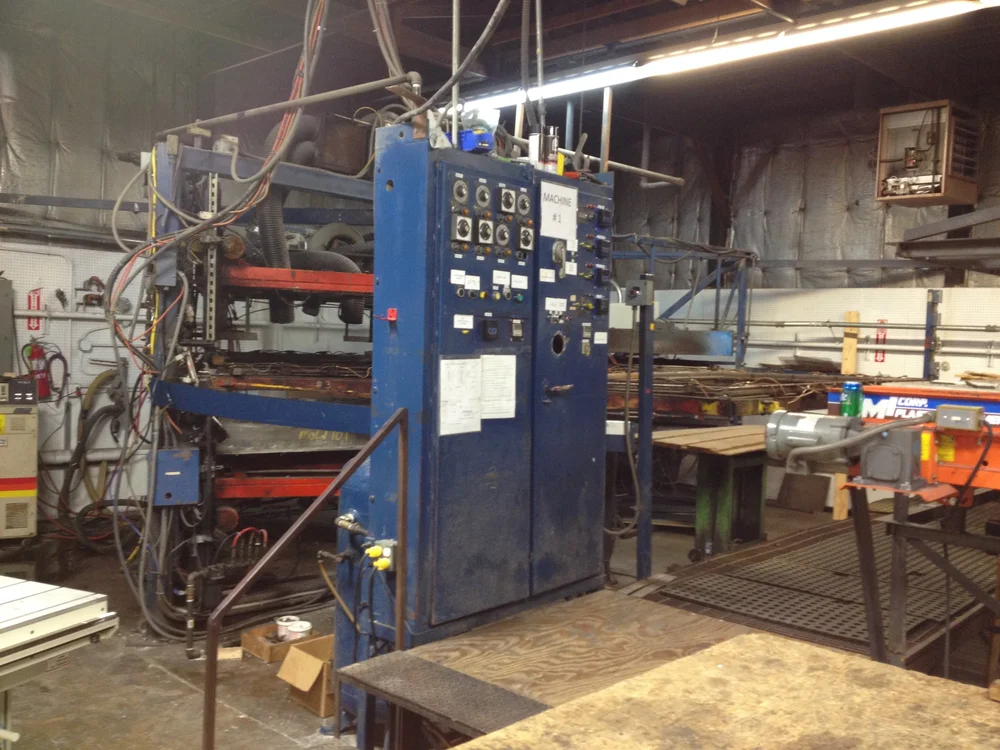

Rotary #1 3 Stage Machine Max Depth of Draw: 30″ Max Sheet Size: 55 x 102″ Max Finished Part Size: 51 x 98”

Rotary #1
3 Stage Machine
Max Depth of Draw: 30″
Max Sheet Size: 55 x 102″
Max Finished Part Size: 51 x 98”

Single Station #5 Single Stage Machine Max Depth of Draw: 24″ Max Sheet Size: 41 x 53″ Max Finished Part Size: 37 x 49″

Single Station #5
Single Stage Machine
Max Depth of Draw: 24″
Max Sheet Size: 41 x 53″
Max Finished Part Size: 37 x 49″

Rotary #7 4 Stage Machine Max Depth of Draw: 24″ Max Sheet Size: 48 x 72″ Max Finished Part Size: 44 x 68″

Rotary #7
4 Stage Machine
Max Depth of Draw: 24″
Max Sheet Size: 48 x 72″
Max Finished Part Size: 44 x 68″


CNC Machines

At PDI we use our CNC Routers for a variety of purposes.  In example, our 3-axis router is used to cut out custom low-quantity parts, while our 2 CNC machining centers are used for mold maintenance adn construction.

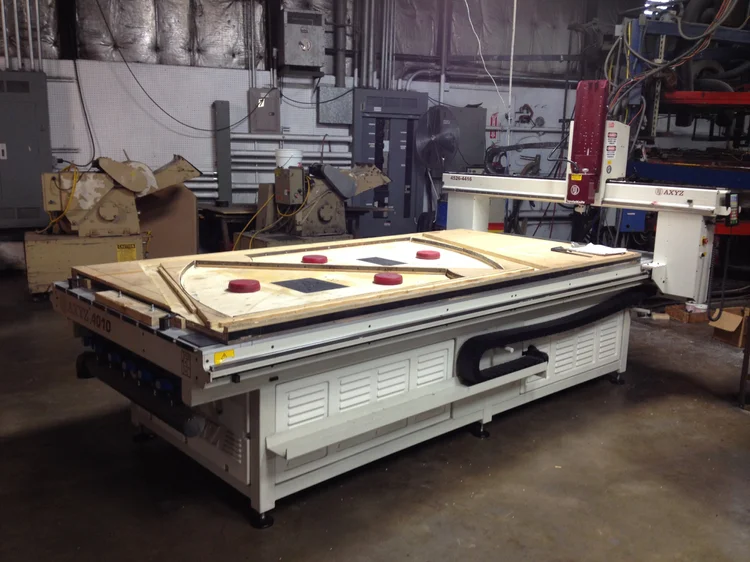

AXYZ 5010 CNC Router / CNC Knife Working Area 60 x 120 x 12″

AXYZ 5010
CNC Router / CNC Knife
Working Area 60 x 120 x 12″

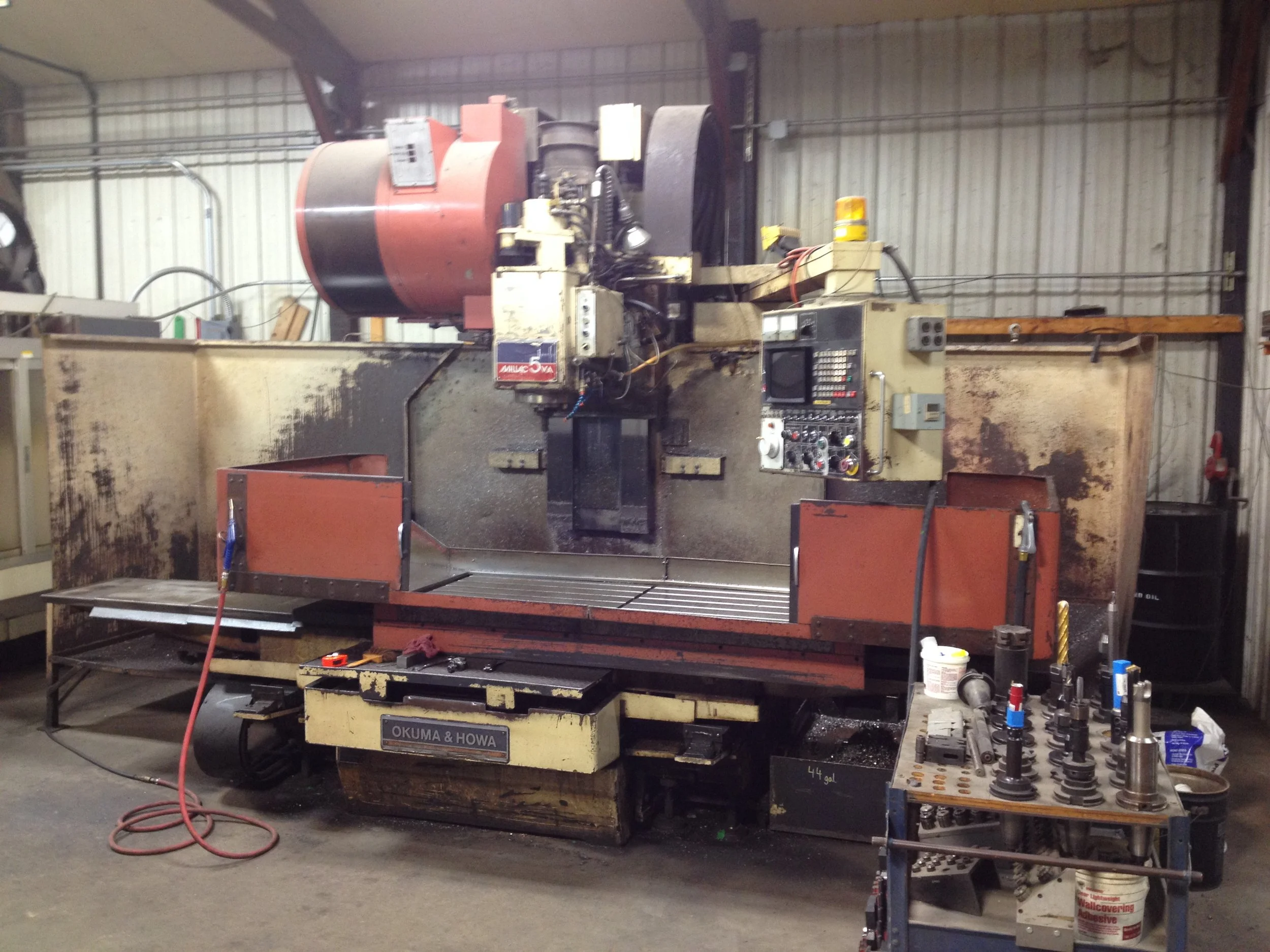

Okuma & Howa Millac 5VA Vertical Machining Center Working Area 41.3 x 22 x 22″

Okuma & Howa Millac 5VA
Vertical Machining Center
Working Area 41.3 x 22 x 22″

Kitamura Mycenter 2X 4 Stage Machine Vertical Machining Center Working Area 30 x 18 x 18.1″

Kitamura Mycenter 2X
4 Stage Machine
Vertical Machining Center
Working Area 30 x 18 x 18.1″
